AIRFOB HARDWARE

Airfob Patch

Instantly and affordably upgrade all your existing access control readers for cloud-based mobile credentials. The Airfob Patch attaches to 13.56 MHz readers and uses energy harvesting to wirelessly draw its power.

BLE

compatible

CLOUD

managed

IP67

water resistant

INSTANT

upgrade

HOW IT WORKS

Bring your RFID readers in the cloud.

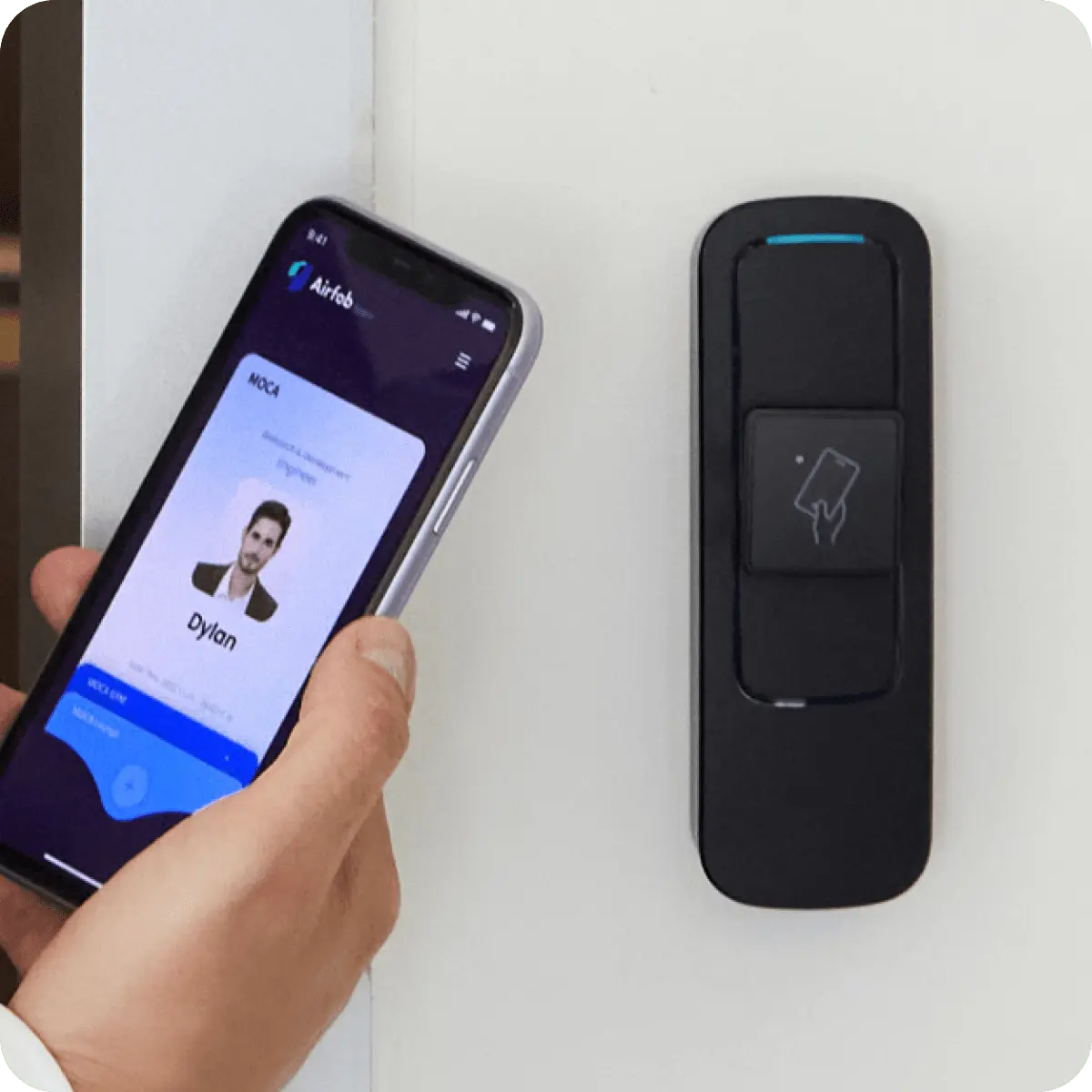

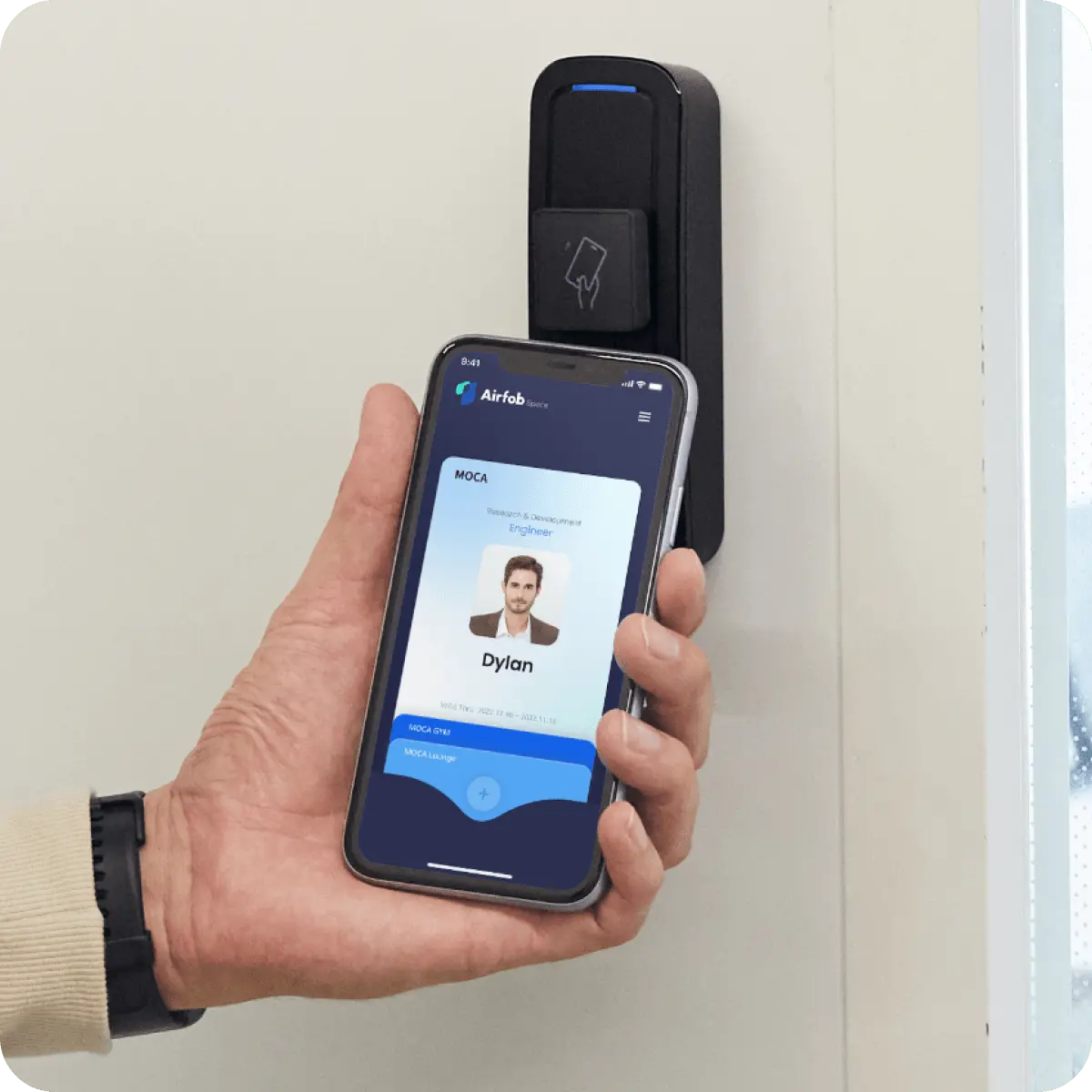

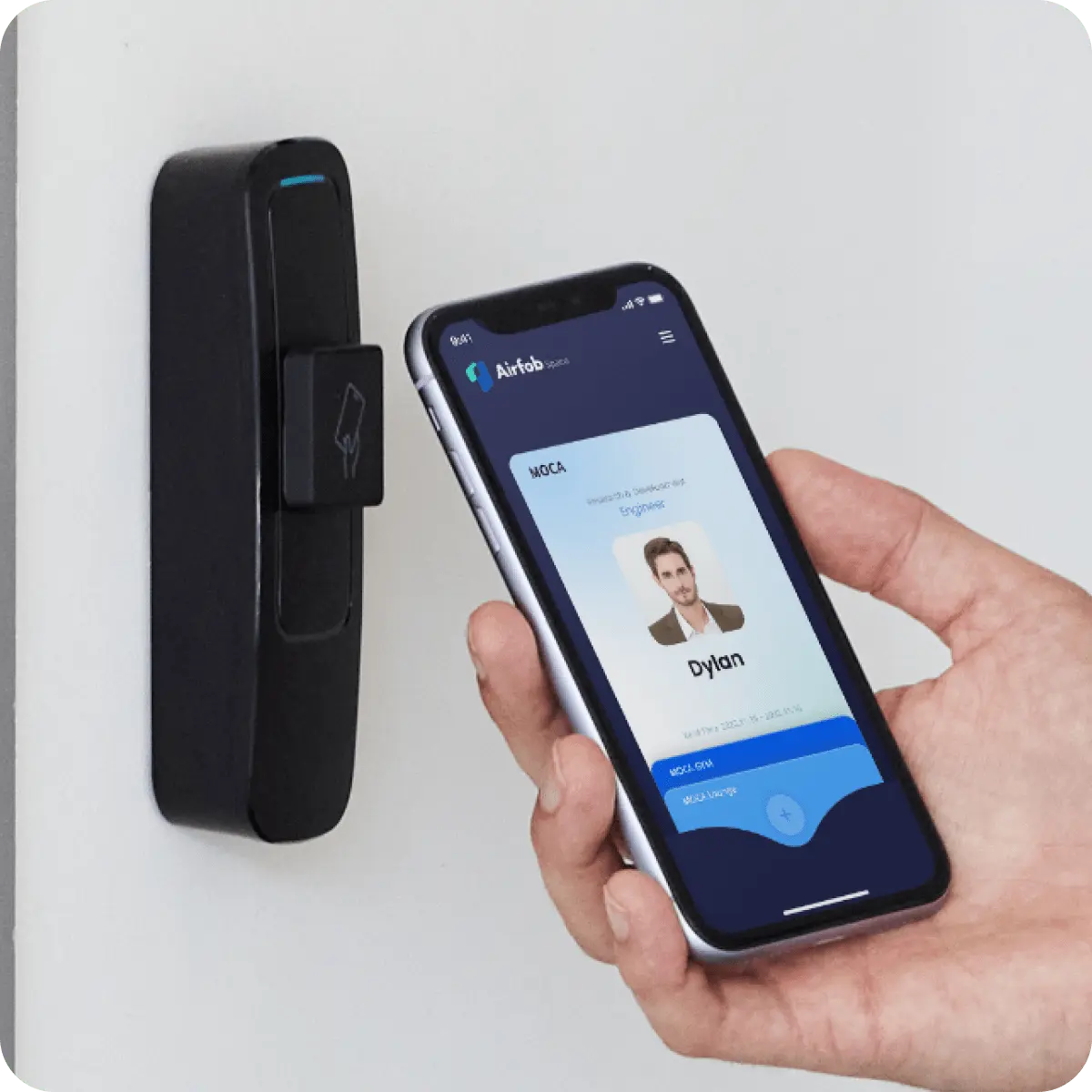

Airfob Patch sticks non-intrusively to a wide range of access control and office devices, allowing only authorized members or personnel to access spaces or activate office equipment using their smartphones.

Access Control Readers

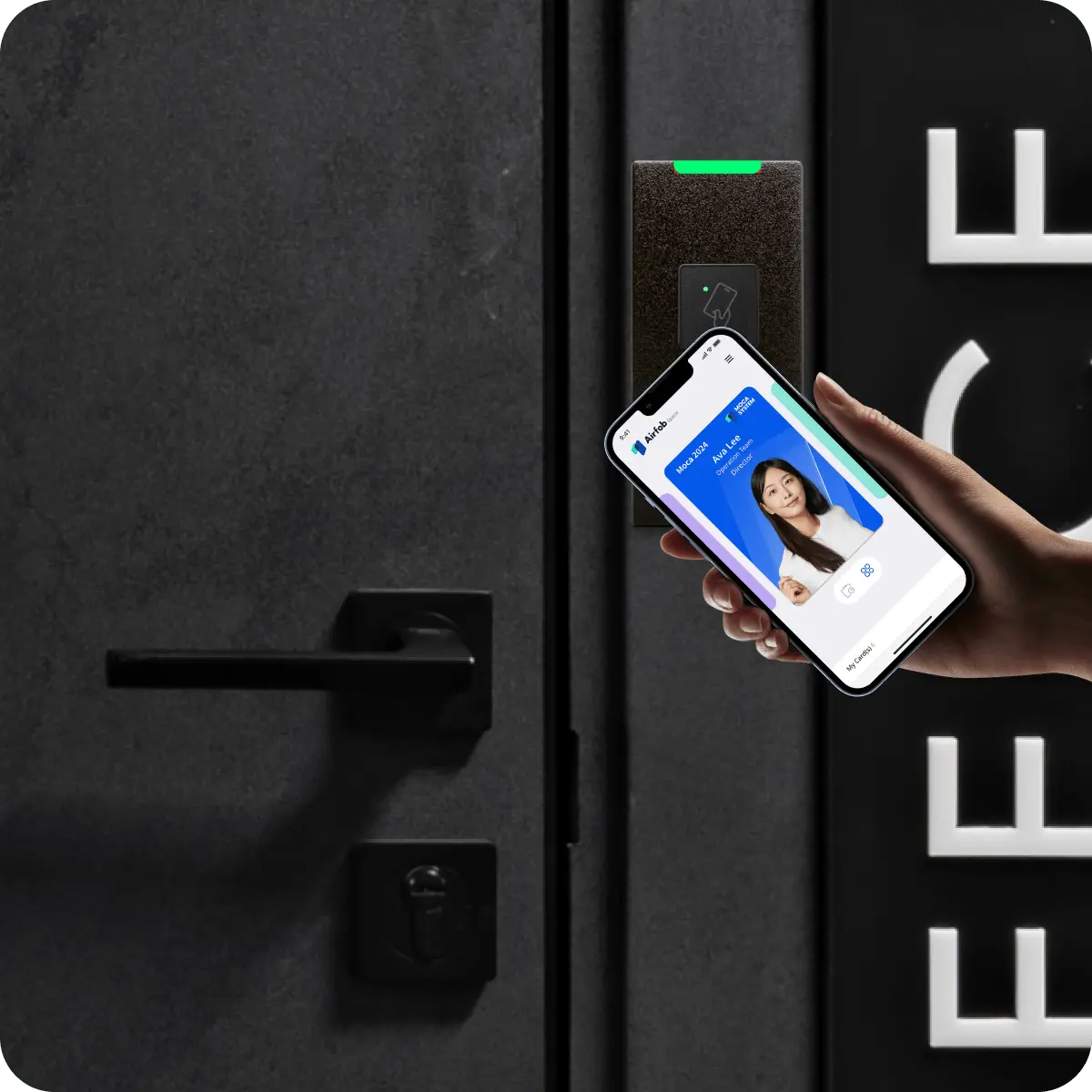

Instantly upgrade existing readers to support mobile credentials without replacing your whole hardware infrastructure, making access control modern and cost-effective.

Turnstile Gates

Enable secure, contactless entry through smartphone credentials, improving flow and security in high-traffic areas.

Copy Machines

Ensure only authorized users and members can access machines, reducing misuse and improving resource management.

Coffee Machines

Grant access to comfort beverages based on membership tiers or permissions, streamlining user interaction.

Vending Machines

Offer personalized access to vending machines, simplifying payment and usage for members.

Membership Card Readers

Replace physical cards with mobile credentials, enhancing user convenience and eliminating card management hassles, while keeping your existing member management system.

BENEFITS

Connect every door to the cloud.

100% Cloud- Managed

Airfob Patch operates offline but can be fully managed online. Effectively manage remotely access control systems running on local servers.

Instant Upgrade

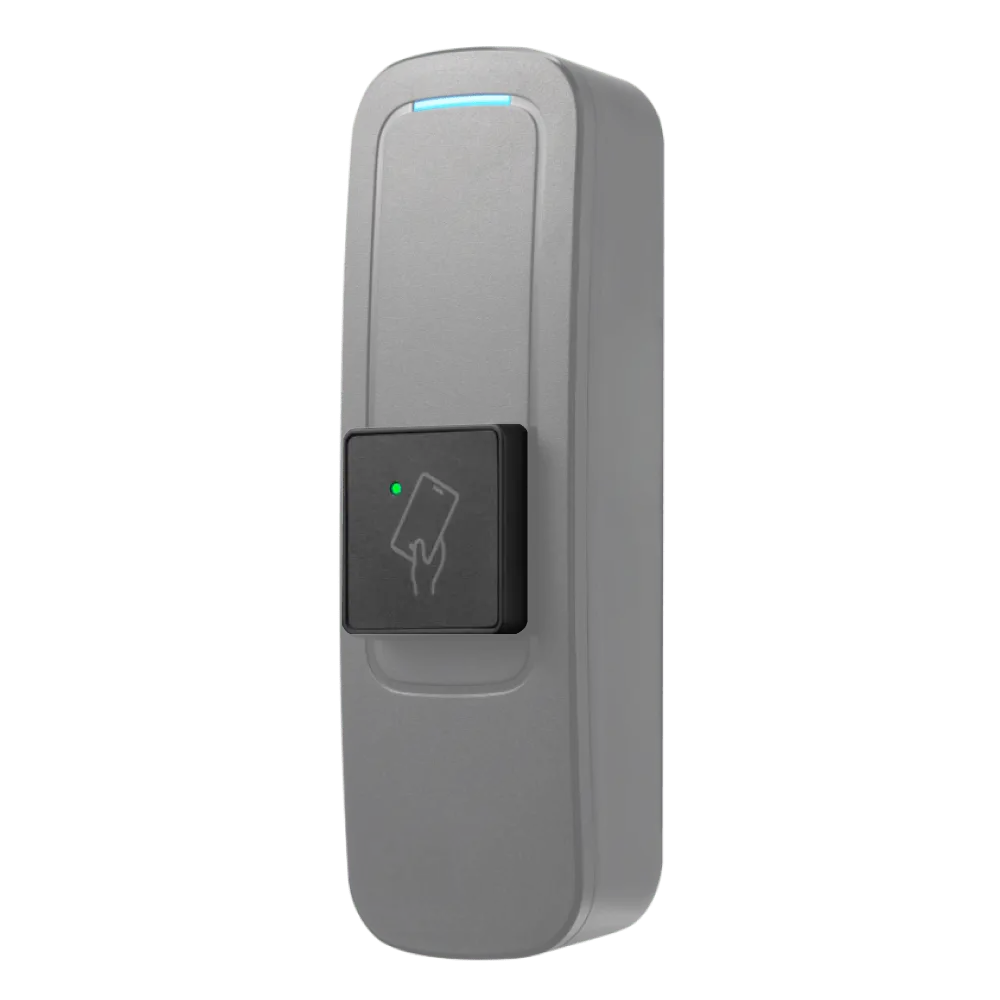

Simply attach the Airfob Patch to your existing RFID reader to instantly upgrade it to work with Airfob Mobile Credentials.

100% Wireless

Airfob Patch is the only solution that doesn’t need to be plugged into the reader. It sits on top of it, with just tape. You can also easily reattach it to new readers.

No battery needed.

Airfob Patch draws its power directly from the wired reader’s RF field using energy harvesting. No batteries to change, ever.

Enterprise security.

Every connection is secured with a new one-time encryption key, similar to a one-time-pass (OTP), which terminates immediately after each data transfer.

NO More Patch Fridays.

There’s no software for your customers to maintain, and they always get the latest version, automatically. Update all your devices firmware remotely, at once.

Product Specifications

Mobile Card
BLE 5.2

RFID Emulation
MIFARE 1K

IP Rating
IP67

LED
2 colors

Operating Temperature
-20°C ~ 50°C

Operating Humidity
0% ~ 95%, non-condensing

Power
Energy Harvesting

Size (WxHxD, mm)
33.9 x 32.4 x 5

Installation
Self-adhesive 3M tape included

Certifications
CE, FCC, KC, RoHS, REACH, WEEE, TELEC

GET STARTED

World's easiest installation.

Unbox. Place the Airfob Patch. Add the device in Airfob Pro with a RFID number registered in your existing access control system. It is that simple.

“It’s this type of continual innovation and drive to succeed that advances the security industry and which contributes to the safety and security of our world.”

Don Erickson

CEO of SIA

QUALITY CONTROL

Long standing manufacturing experience.

All of our readers are made in a state-of-the-art factory in South Korea. Yes, it costs a bit more, but the result is a device that works straight out of the box and is proven to last for years.
